Epiroc ADU Series Auger

The Epiroc ADU hydraulic auger drive for excavators is ideal for challenging drilling tasks in soil and soft rock. Its compact housing with a radial piston motor provides high torque, resulting in increased productivity.

The hydraulic auger can be combined with drill heads for various soil conditions. The Epiroc ADU auger drive is suitable for excavators weighing between 3 and 50 tons.

Are you looking for a hydraulic auger for excavators? Below, you’ll find our selection for easy comparison, ensuring you find the right attachment for your project! Prefer personal advice? Contact us or fill out the quote form!

Epiroc ADU Series Auger

Quick Change System enables easy auger replacement.
Bearing System is strong and lubrication-free for minimal downtime.
Piston Motor features high torque, resulting in increased productivity.
Drilling Depth depending on ground depth and model, can drill up to 8 meters deep.

Epiroc ADU Series Auger

EBK-F for above-ground and liquid soil.
EBK-RF for easily to moderately excavatable soil.
EBK-R3 for medium to hard soil and easily excavatable rock.
EBK-R3 HD for hard-to-excavate soil and hard rock (max. 60 - 80 MPa).

Direct & Personal

Jeroen Hornman

Sales Netherlands

Request a quote

Fotogalerij

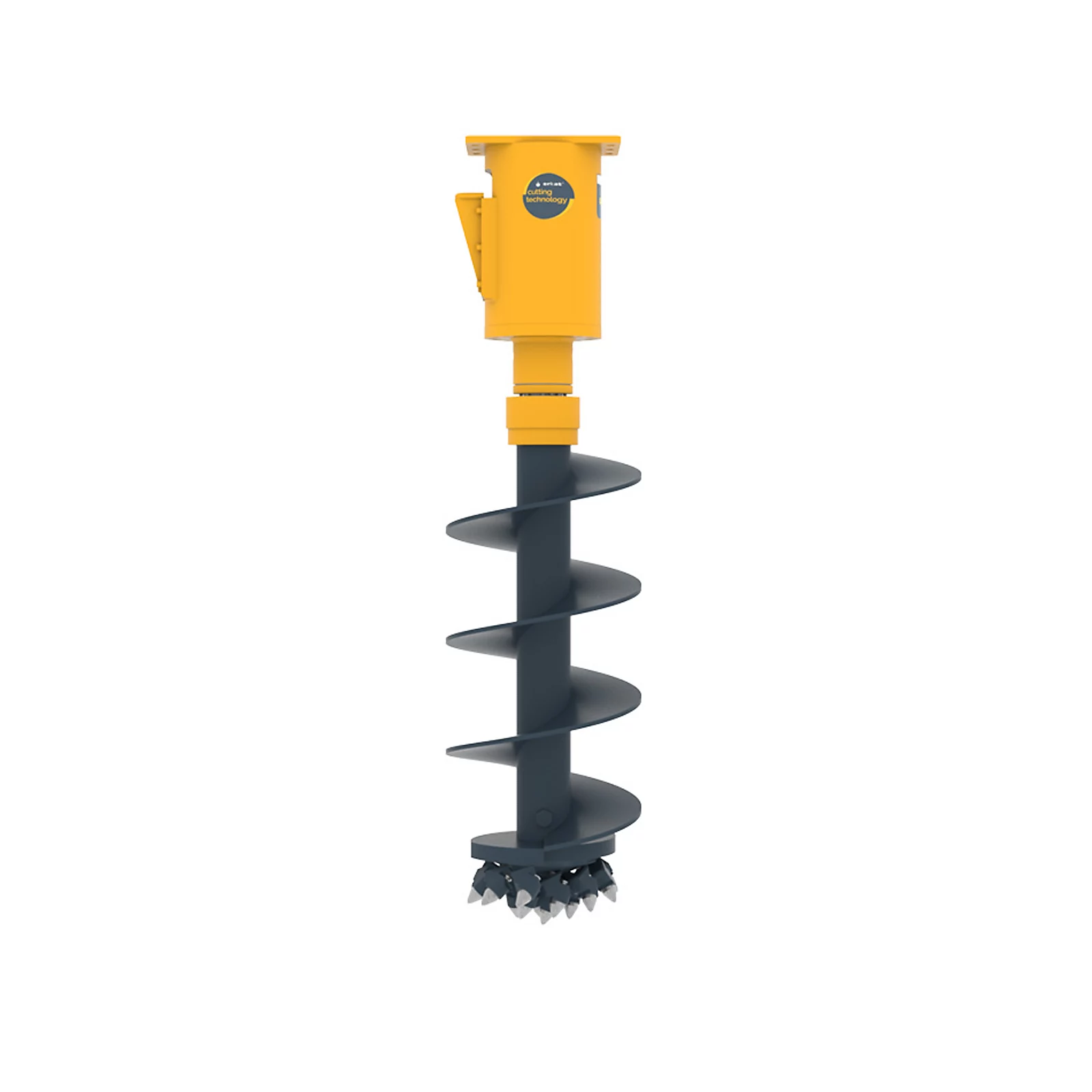

Epiroc ADU-100

Epiroc ADU-100

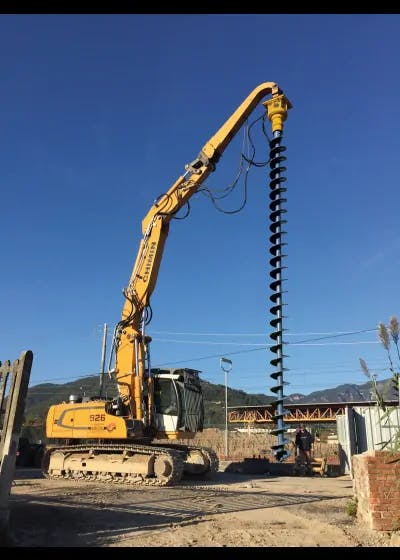

ADU Grondboor

ADU Grondboor

ADU 100

ADU 250

ADU 450

ADU 600

Carrier Weight	14 - 22 t
Service weight	750 kg
Product Weight	460 kg
Nominal Power	65 kW
H (hexagonale fit)	80/120/160 mm
Rotation speed	40 - 80 rpm
Optimal Oil Flow ³	75 - 150 l/min
Max. koppel	10.4 kNm
Max. oliestroom	170 l/min
Max Working Pressure	350 bar
Max. drill depth	6.000 mm
Max. drill diameter (Soil class 1-3)	900 mm
Max. drill diameter (Soil class 4-5)	700 mm
Max. drill diameter (Soil class 6-7)	500 mm

ERL 700

ERL 1100

Carrier Weight	18 - 35 t
Service weight	1.090 kg
Product Weight	540 kg
Nominal Power	120 kW
H (hexagonale fit)	160 mm
Rotation speed	50 - 70 rpm
Optimal Oil Flow ³	200 - 300 l/min
Max. koppel	23.4 kNm
Max. oliestroom	320 l/min
Max Working Pressure	350 bar
Max. drill depth	7.000 mm
Max. drill diameter (Soil class 1-3)	1.500 mm
Max. drill diameter (Soil class 4-5)	1.200 mm
Max. drill diameter (Soil class 6-7)	900 mm

ADU 1500

Carrier Weight	18 - 40 t
Service weight	1.370 kg
Product Weight	850 kg
Nominal Power	120 kW
H (hexagonale fit)	80/120/160 mm
Rotation speed	50 - 70 rpm
Optimal Oil Flow ³	200 - 300 l/min
Max. koppel	23.4 kNm
Max. oliestroom	320 l/min
Max Working Pressure	350 bar
Max. drill depth	7.000 mm
Max. drill diameter (Soil class 1-3)	1.500 mm
Max. drill diameter (Soil class 4-5)	1.200 mm
Max. drill diameter (Soil class 6-7)	900 mm

ADU 2000

Carrier Weight	30 - 55 t
Service weight	1.900 kg
Product Weight	1250 kg
Nominal Power	160 kW
H (hexagonale fit)	120/160 mm
Rotation speed	30 - 60 rpm
Optimal Oil Flow ³	200 - 360 l/min
Max. koppel	33.5 kNm
Max. oliestroom	400 l/min
Max Working Pressure	350 bar
Max. drill depth	8.000 mm
Max. drill diameter (Soil class 1-3)	1.600 mm
Max. drill diameter (Soil class 4-5)	1.500 mm
Max. drill diameter (Soil class 6-7)	1.100 mm
