Drumcutters Erkat ERC Series

Name: Drum cutter ERC-serie - SAES
Brand: Erkat

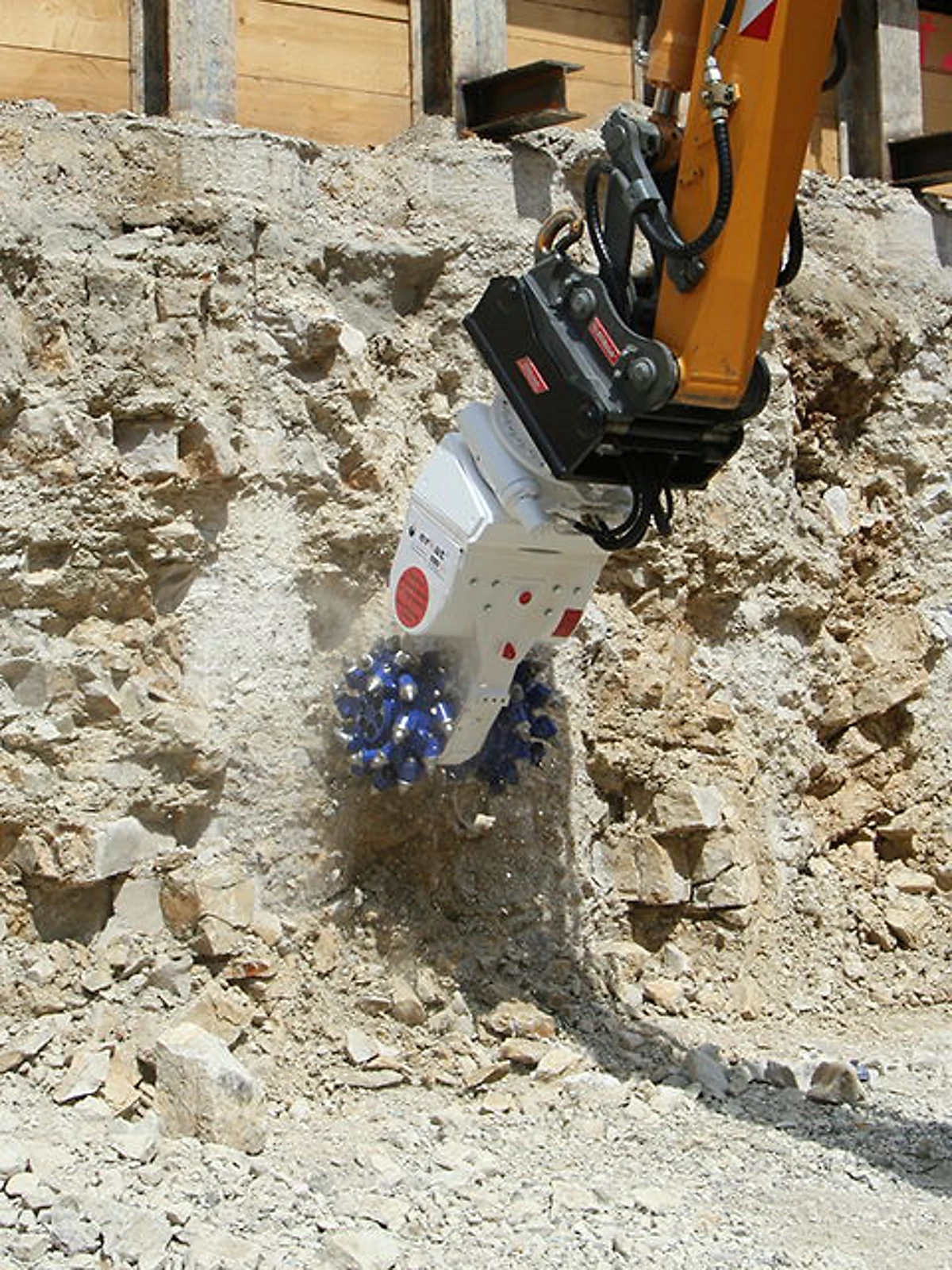

The Erkat ERC concrete milling cutter for excavators represents a new generation of mills strong enough for use in tunnel, trench, and profile applications. The drum cutters are durable, robust, and require minimal maintenance.

Thanks to the standard 360-degree hydraulic rotation, the drum cutters can be optimally positioned. The robust housing with HARDOX protection results in higher uptime. The Erkat ERC drum cutter is suitable for excavators weighing between 10 and 30 tons.

Are you looking for a concrete milling cutter for excavators? Below you can find our selection and easily compare, so you can be sure to find the right attachment for your project! Prefer personalized advice? Then contact us or fill out the quote form!

Features

QuickSnap System enables quick and easy replacement of the picks (ER 600 - 3000).
Radial suction motor With high torque for increased productivity.
HARDOX Protection A special hard, wear-resistant steel alloy, which wears very little.
Hatcon tracking system Allows you to monitor the performance of the attachment in real time.

Direct & Personal

Sales Netherlands

Request a quote

Fotogalerij

Filter by tonnage

1 tAll70 t

ERC 50

Datasheet ERC 50
Carrier weight class	1 t - 3 t
Operating weight	340 kg
Product weight	300 kg
Rated power	18 kW
Rotational speed	150 rpm
Optimal oilflow	25 l/min - 38 l/min
Maximum torque at 350 bar	1.420 Nm
Maximum cutting force at 350 bar	11.850 N
Drive shaft diameter	15 mm
Number of picks	56
Maximum oil flow at 10 bar	60 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 100

Datasheet ERC 100
Carrier weight class	3 t - 7 t
Operating weight	530 kg
Product weight	490 kg
Rated power	30 kW
Rotational speed	115 rpm
Optimal oilflow	41 l/min - 62 l/min
Maximum torque at 350 bar	3.000 Nm
Maximum cutting force at 350 bar	16.200 N
Drive shaft diameter	20 mm
Number of picks	64
Maximum oil flow at 10 bar	90 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 250

Datasheet ERC 250
Carrier weight class	8 t - 15 t
Operating weight	950 kg
Product weight	880 kg
Rated power	45 kW
Rotational speed	90 rpm
Optimal oilflow	60 l/min - 85 l/min
Maximum torque at 350 bar	5.200 Nm
Maximum cutting force at 350 bar	23.200 N
Drive shaft diameter	22 mm
Number of picks	44
Maximum oil flow at 10 bar	100 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 600

Datasheet ERC 600
Carrier weight class	10 t - 18 t
Operating weight	1.280 kg
Product weight	1.200 kg
Rated power	65 kW
Rotational speed	80 rpm
Optimal oilflow	120 l/min - 150 l/min
Maximum torque at 350 bar	10.100 Nm
Maximum cutting force at 350 bar	35.100 N
Drive shaft diameter	35 mm
Number of picks	48
Maximum oil flow at 10 bar	170 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 650

Datasheet ERC 650
Carrier weight class	15 t - 25 t
Operating weight	1.760 kg
Product weight	1.560 kg
Rated power	80 kW
Rotational speed	80 rpm
Optimal oilflow	140 l/min - 190 l/min
Maximum torque at 350 bar	12.400 Nm
Maximum cutting force at 350 bar	42.400 N
Drive shaft diameter	30 mm
Number of picks	44
Maximum oil flow at 10 bar	210 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

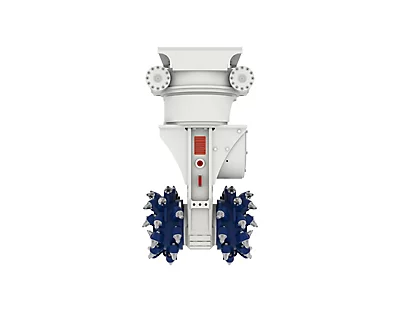

ERC 1500x

Datasheet ERC 1500x
Carrier weight class	20 t - 40 t
Operating weight	2.700 kg
Product weight	2.450 kg
Rated power	75 kW
Rotational speed	75 rpm
Optimal oilflow	205 l/min - 300 l/min
Maximum torque at 350 bar	23.400 Nm
Maximum cutting force at 350 bar	66.000 N
Drive shaft diameter	30 mm
Number of picks	44
Maximum oil flow at 10 bar	320 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 1500xl

Datasheet ERC 1500xl
Carrier weight class	20 t - 40 t
Operating weight	2.800 kg
Product weight	2.500 kg
Rated power	120 kW
Rotational speed	75 rpm
Optimal oilflow	205 l/min - 300 l/min
Maximum torque at 350 bar	23.400 Nm
Maximum cutting force at 350 bar	66.000 N
Drive shaft diameter	30 mm
Number of picks	48
Maximum oil flow at 10 bar	320 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 1700

Datasheet ERC 1700
Carrier weight class	30 t - 50 t
Operating weight	3.240 kg
Product weight	2.990 kg
Rated power	120 kW
Rotational speed	72 rpm
Optimal oilflow	290 l/min - 360 l/min
Maximum torque at 350 bar	27.900 Nm
Maximum cutting force at 350 bar	77.500 N
Drive shaft diameter	30 mm
Number of picks	56
Maximum oil flow at 10 bar	400 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 2000

Datasheet ERC 2000
Carrier weight class	35 t - 55 t
Operating weight	3.600 kg
Product weight	3.300 kg
Rated power	160 kW
Rotational speed	65 rpm
Optimal oilflow	300 l/min - 390 l/min
Maximum torque at 350 bar	31.500 Nm
Maximum cutting force at 350 bar	87.500 N
Drive shaft diameter	30 mm
Number of picks	56
Maximum oil flow at 10 bar	410 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

ERC 3000

Datasheet ERC 3000
Carrier weight class	50 t - 70 t
Operating weight	5.700 kg
Product weight	5.200 kg
Rated power	200 kW
Rotational speed	53 rpm
Optimal oilflow	350 l/min - 450 l/min
Maximum torque at 350 bar	46.800 Nm
Maximum cutting force at 350 bar	116.300 N
Drive shaft diameter	38 mm
Number of picks	64
Maximum oil flow at 10 bar	500 l/min
Maximum operating pressure	350 bar

Offerte aanvragen

See all available attachments

Choose maximum production with SAES service

Your attachment only performs at its best when maintenance is up to date. SAES handles the maintenance, repair and installation of your attachments in our own workshop, and our field service technicians are available 24/7 on site. We work exclusively with original parts and keep the most common wear parts in stock, minimising your downtime.

Replacement of chisel bushings
Replacement of wear blades
Preventive maintenance and inspection
Repair and overhaul in our own workshop
On-site installation and adjustment
Supply of original parts
