Drumcutters Erkat ER-L- Axial

The ER-L concrete milling machine from Erkat for excavators stands out with its axial milling direction. The ER-L cutter is used for trench digging, precise excavation, slag removal in steel plants, and cleaning pile caps.

The longitudinal drum cutter is powered by a powerful radial suction motor that generates extremely high cutting force. The robust housing and strong, lubricant-free bearing system result in more uptime. The Erkat ER-L drum cutter is suitable for excavators weighing between 3 and 50 tons.

Are you looking for a longitudinal concrete cutter for excavators? Below you will find our range and can easily compare, ensuring you find the right attachment for your project! Prefer personal advice? Contact us or fill out the quote form! persoonlijk advies? Neem dan contact met ons op of vul het offerte formulier in!

Features

Radial suction motor with high torque for increased productivity.
Cutter heads are replaceable.
Cutter head can be replaced with a drill for drilling in soft rocks.
Underwater can be used up to 30 meters without modifications.

Optional

Hatchon tracking system enables real-time performance monitoring of the attachment.

Direct & Personal

Jeroen Hornman

Sales Netherlands

Request a quote

Fotogalerij

Erkat ERL 700

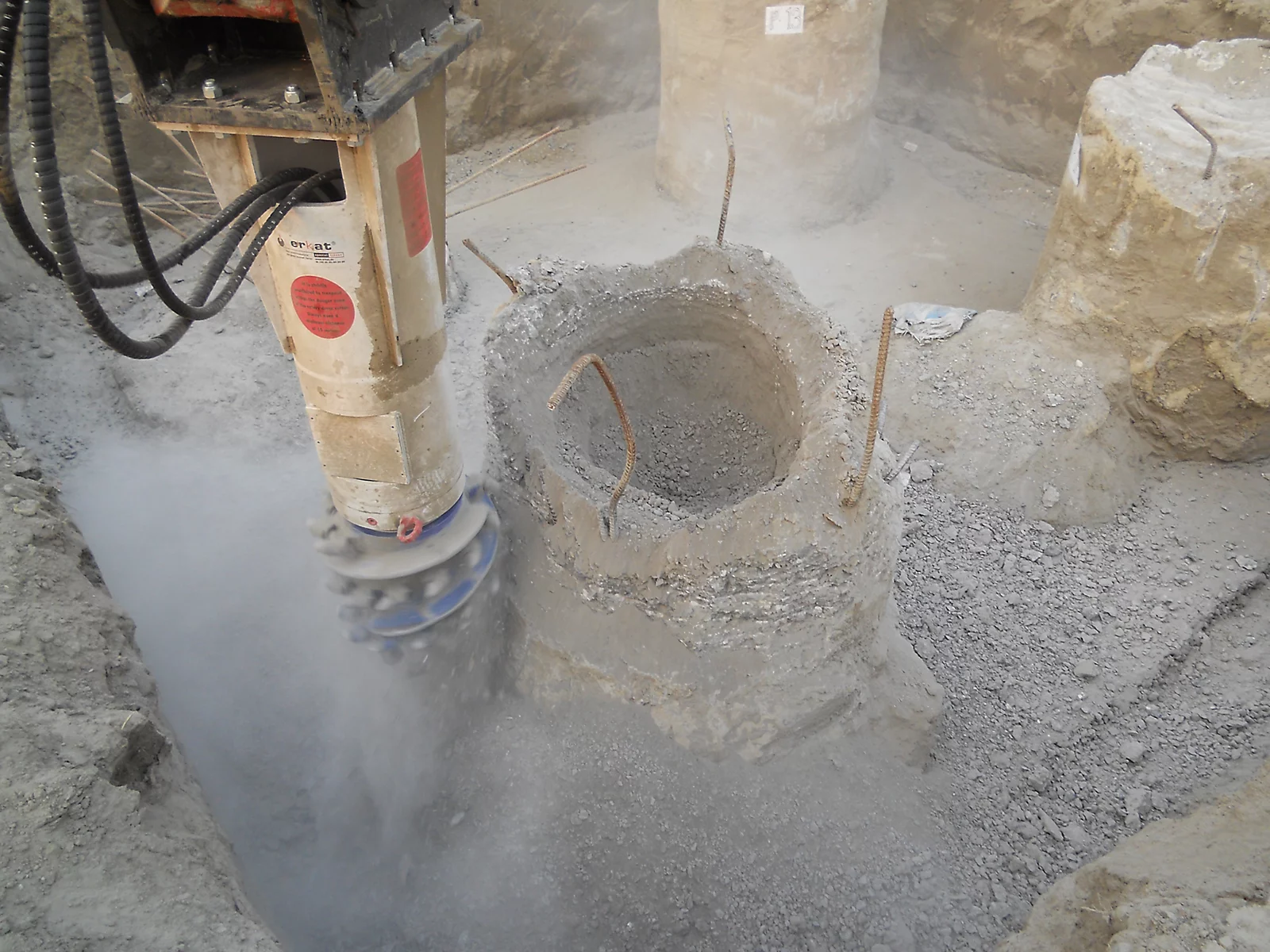

Erkat ERL

ER 100L

ER 250L

ER 400L

ER 450L

ER 600L

ER 700L

ER 1100L

ER 1500L

ER 2000L

Carrier Weight Class	3 t - 7 t
Operating Weight	250 kg
Product Weight	210 kg
Nominal Power	30 kW
Rotational Speed	110 rpm
Optimal Oil Flow ³	52 l/min - 62 l/min
Max Torque at 350 bar	3.120 Nm
Max Cutting Force at 350 bar	16.900 N
Hub Shaft Diameter	20 mm
Number of Picks	32
Max Oil Flow at 10 bar	90 l/min
Max Working Pressure	350 bar

Carrier Weight Class	8 t - 15 t
Operating Weight	410 kg
Product Weight	340 kg
Nominal Power	45 kW
Rotational Speed	90 rpm
Optimal Oil Flow ³	60 l/min - 85 l/min
Max Torque at 350 bar	5.200 Nm
Max Cutting Force at 350 bar	26.000 N
Hub Shaft Diameter	20 mm
Number of Picks	40
Max Oil Flow at 10 bar	100 l/min
Max Working Pressure	350 bar

Carrier Weight Class	12 t - 17 t
Operating Weight	440 kg
Product Weight	365 kg
Nominal Power	65 kW
Rotational Speed	80 rpm
Optimal Oil Flow ³	120 l/min - 150 l/min
Max Torque at 350 bar	10.400 Nm
Max Cutting Force at 350 bar	52.000 N
Hub Shaft Diameter	20 mm
Number of Picks	40
Max Oil Flow at 10 bar	170 l/min
Max Working Pressure	350 bar

Carrier Weight Class	12 t - 17 t
Operating Weight	450 kg
Product Weight	375 kg
Nominal Power	65 kW
Rotational Speed	80 rpm
Optimal Oil Flow ³	120 l/min - 150 l/min
Max Torque at 350 bar	10.400 Nm
Max Cutting Force at 350 bar	46.200 N
Hub Shaft Diameter	22 mm
Number of Picks	30
Max Oil Flow at 10 bar	170 l/min
Max Working Pressure	350 bar

Carrier Weight Class	15 t - 22 t
Operating Weight	660 kg
Product Weight	580 kg
Nominal Power	65 kW
Rotational Speed	80 rpm
Optimal Oil Flow ³	120 l/min - 150 l/min
Max Torque at 350 bar	10.400 Nm
Max Cutting Force at 350 bar	38.900 N
Hub Shaft Diameter	22 mm
Number of Picks	42
Max Oil Flow at 10 bar	170 l/min
Max Working Pressure	350 bar

Carrier Weight Class	15 t - 25 t
Operating Weight	700 kg
Product Weight	600 kg
Nominal Power	70 kW
Rotational Speed	75 rpm
Optimal Oil Flow ³	160 l/min - 160 l/min
Max Torque at 350 bar	11.700 Nm
Max Cutting Force at 350 bar	52.000 N
Hub Shaft Diameter	22 mm
Number of Picks	30
Max Oil Flow at 10 bar	200 l/min
Max Working Pressure	350 bar

Carrier Weight Class	25 t - 35 t
Operating Weight	900 kg
Product Weight	660 kg
Nominal Power	120 kW
Rotational Speed	75 rpm
Optimal Oil Flow ³	240 l/min - 300 l/min
Max Torque at 350 bar	23.400 Nm
Max Cutting Force at 350 bar	93.600 N
Hub Shaft Diameter	30 mm
Number of Picks	26
Max Oil Flow at 10 bar	320 l/min
Max Working Pressure	350 bar

Carrier Weight Class	20 t - 40 t
Operating Weight	1.450 kg
Product Weight	1.200 kg
Nominal Power	120 kW
Rotational Speed	75 rpm
Optimal Oil Flow ³	200 l/min - 300 l/min
Max Torque at 350 bar	23.400 Nm
Max Cutting Force at 350 bar	68.800 N
Hub Shaft Diameter	30 mm
Number of Picks	24
Max Oil Flow at 10 bar	320 l/min
Max Working Pressure	350 bar

Carrier Weight Class	35 t - 50 t
Operating Weight	1.800 kg
Product Weight	1.500 kg
Nominal Power	160 kW
Rotational Speed	65 rpm
Optimal Oil Flow ³	300 l/min - 390 l/min
Max Torque at 350 bar	33.500 Nm
Max Cutting Force at 350 bar	93.000 N
Hub Shaft Diameter	30 mm
Number of Picks	28
Max Oil Flow at 10 bar	410 l/min
Max Working Pressure	350 bar
