Clay Bucket SAES

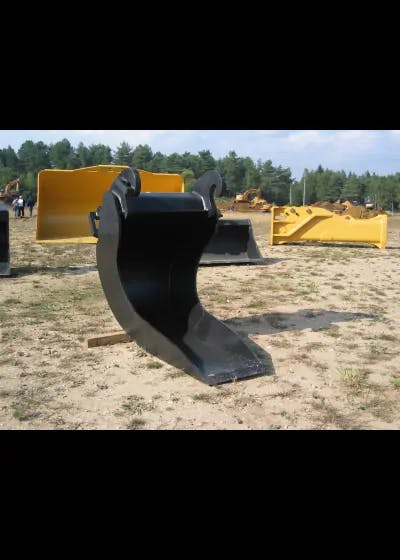

The SAES clay buckets are designed to dig narrow trenches. Their clay-like shape allows them to be easily emptied, preventing the soil from sticking. They are also referred to as clay buckets or trench buckets.

SAES offers two types of clay buckets: the straight model, which is the standard version, and the tapered model, which is narrower at the blade side and wider at the suspension. The tapered model is ideal for digging deep trenches without the trench walls collapsing. The clay bucket is available for excavators with a weight between 0.8 and 21 tons.

Looking for a clay bucket for excavators? Below you can find our selection and easily compare them, ensuring you find the right attachment for your project! Prefer personal advice? Feel free to contact us or fill out the quote form!

Direct & Personal

Jeroen Hornman

Sales Netherlands

Request a quote

Fotogalerij

BS012 t/m BS018 CW0 (recht model)

BS027 t/m BS033 CW10 (recht model)

BS065 CW20/30 (recht model)

BS012 t/m BS018 CW20/30 (taps model)

Carrier Weight	0,8 - 4,2 t
Width	220 - 500 mm
Height	435 - 550 mm
Opening	435 - 600 mm
Depth	500 - 645 mm
Blade	150x20 mm
Mass	35 - 70 kg
Max. mass load	0,30 - 0,40 t

Carrier Weight	3,0 - 9,0 t
Width	250 - 600 mm
Height	650 - 760 mm
Opening	720 - 830 mm
Depth	760 - 860 mm
Blade	200x25 mm
Mass	85 - 140 kg
Max. mass load	0,65 - 0,75 t

Carrier Weight	11 - 21 t
Width	300 - 800 mm
Height	1025 mm
Opening	1140 mm
Depth	1270 mm
Blade	250x30 mm
Mass	285 - 420 kg
Max. mass load	4,5 t

Carrier Weight	11 - 21 t
Width	300 - 700 mm
Height	1025 mm
Opening	1140 mm
Depth	1270 mm
Blade	250x30 mm
Mass	325 - 375 kg
Max. mass load	4,5 t
