SAES Magneet 750K
Carrier Weight | 7 - 15 t |
Operating Weight | 600 kg |
Magnet Plate Diameter | 750 mm |
Base Height | 245 mm |
Height Incl. Chain/Plate | 1200 mm |
Max Working Pressure | 200 bar |
Oil Flow | 50 - 120 l/min |
Power | 2.6 kW |
Hydraulic Magnet

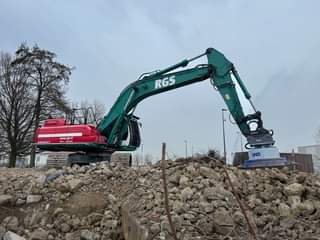

The hydraulic magnet from SAES for excavators offers an extremely efficient way to collect and remove ferrous materials from debris. A hydraulic magnet does not use electricity, but the hydraulic system of the excavator, allowing it to be connected to any hydraulic excavator. The hydraulic magnet has a fixed magnet plate for applications at various demolition sites.

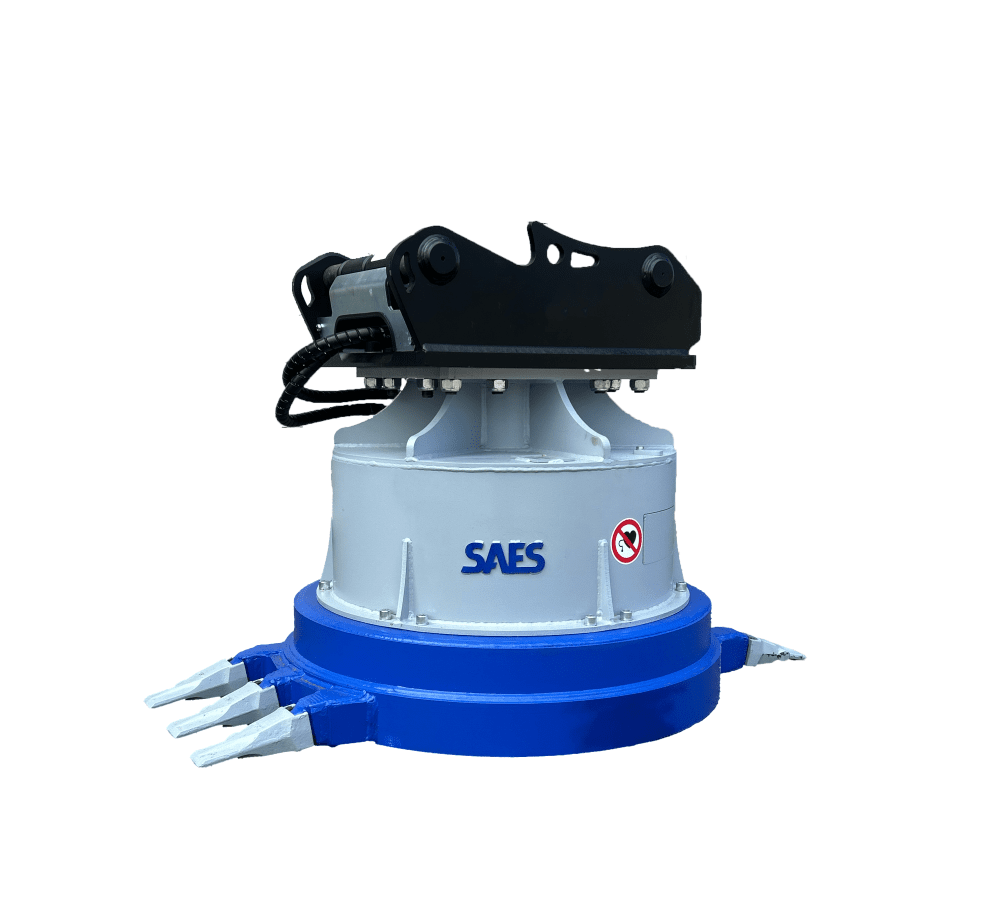

Hydraulic magnets equipped with a quick coupler can be attached without manual intervention from the operator and offer more precise positioning on the material, making them highly efficient. Additionally, the quick coupler can be adjusted to the user's needs, ensuring compatibility with their machines.

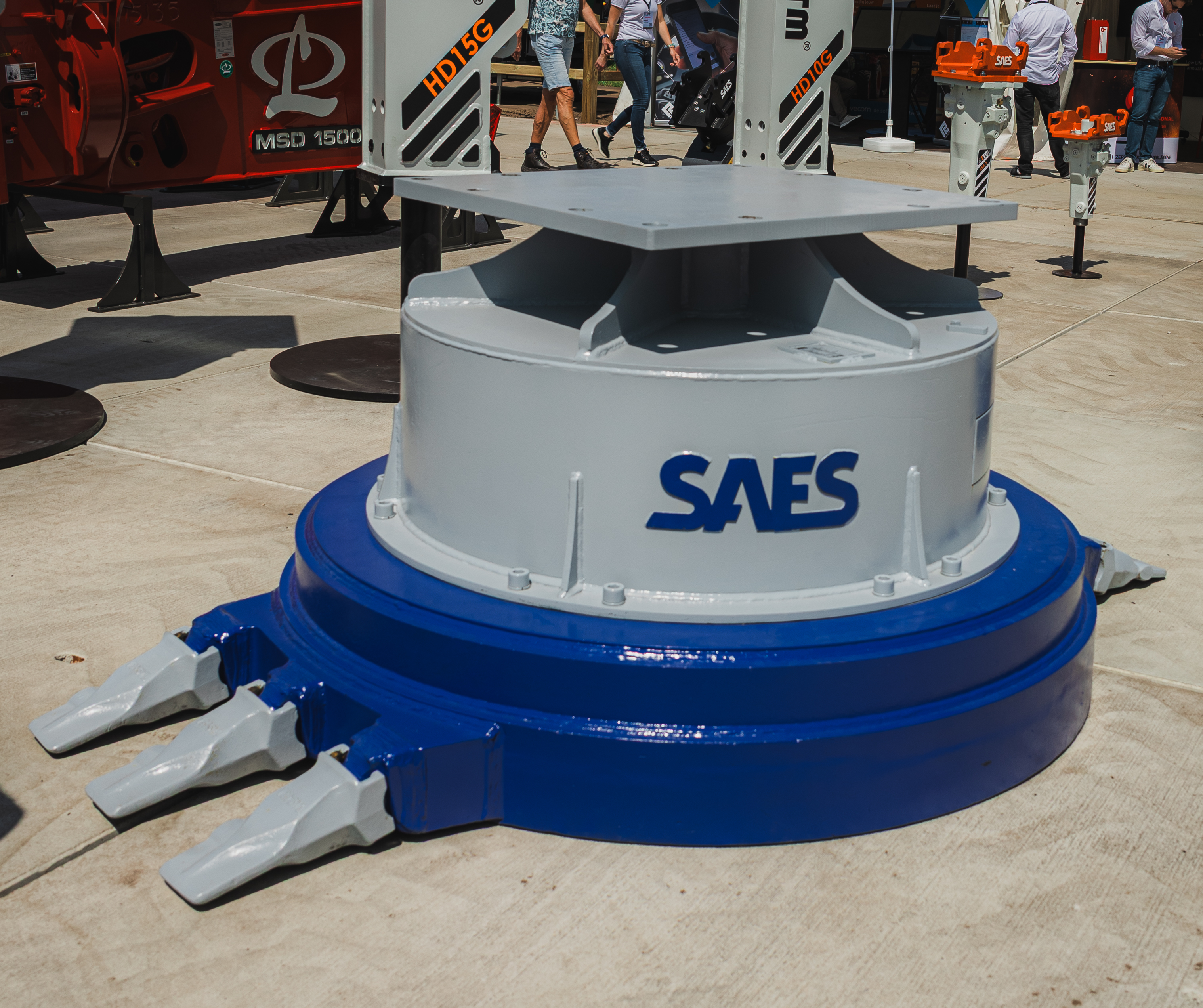

The SAES magnet is available in both a quick-change version and a 3-point chain version. By choosing the flat plate, the magnet can be equipped with a suitable top plate and can be attached to the carrier.
Features
- Interchangeable teeth Allow debris to be raked.
- 3-point chain For attachment to a hydraulic excavator.
