Crusher VTN HP01
Carrier Weight | 1,3 - 4 t |
Product Weight | 185 kg |
Max Jaw Opening | 665 mm |
Blade Length | 85 mm |
Working Pressure | 220 bar |
Oil Flow | 20 - 25 l/min |
Oil Flow Rotation | 2 - 5 l/min |
Max Working Pressure Rotation | 180 - 220 bar |

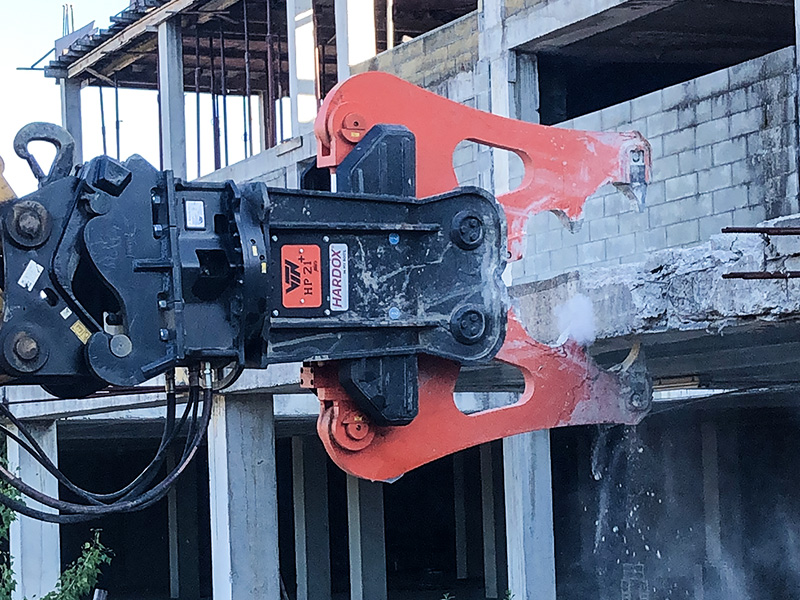

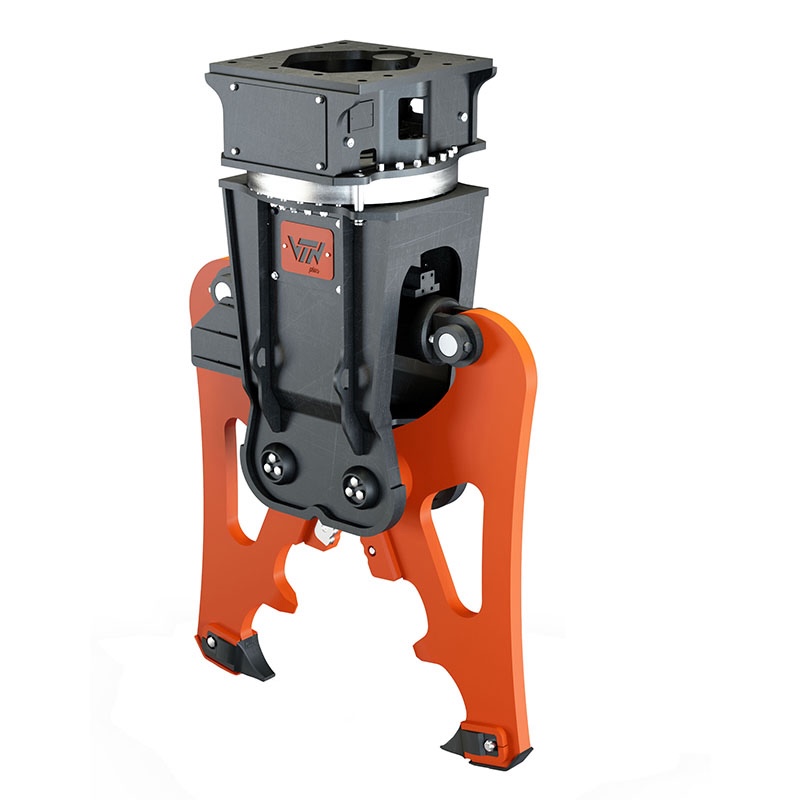

Concrete Shear with Booster VTN HP
The HP concrete shear with booster from VTN for excavators is specifically designed for primary demolition work. The concrete shear is recommended for excavators with a high-reach arm of over 20 meters. The concrete shear features a cylinder, two pivot points, and large jaws, resulting in consistent closing force to perform specialized demolition tasks.
The concrete shear with booster has a standard 360-degree rotation for precise operation and optimal positioning. The VTN HP+ is available for excavators weighing between 1.8 and 29 tons.
Are you looking for a concrete shear with a booster for excavators? Below, you’ll find our offerings for easy comparison, ensuring you find the suitable attachment for your project! Prefer personal advice? Contact us or fill out the quotation form!
Features
- Low center of gravity due to its compact design.
- Cylinder fully protected.
- High cutting capacity.
- HARDOX Protection is a special hard, wear-resistant steel alloy that barely wears.
Optioneel
- Snijmessen zijn verwisselbaar.
- Breektanden zijn verwisselbaar.
- Optional
- Cutting blades are interchangeable.
- Breaking teeth are interchangeable.
- Booster for more power and faster cycle times.
