Multi cutter SC-serie for excavators

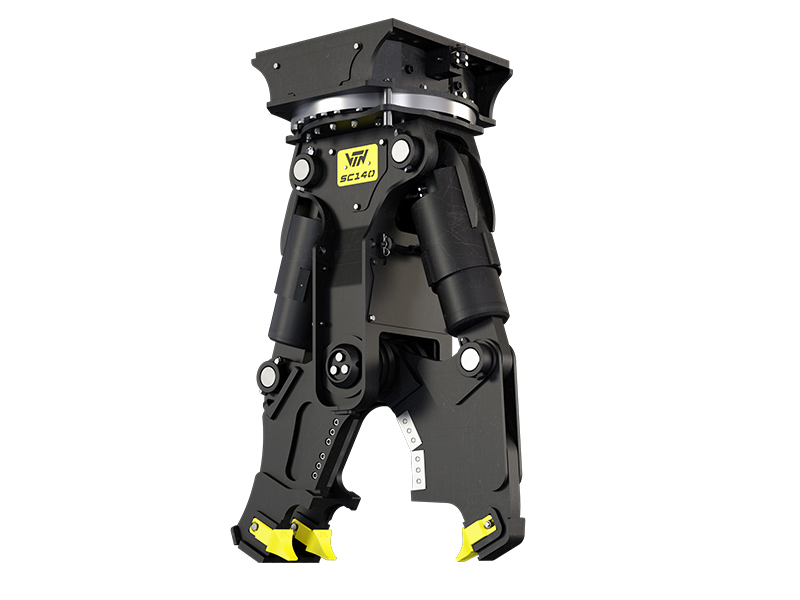

VTN SC Series Multi-Processor

The VTN SC multi-processor is suitable for various types of demolition work, from primary to secondary. It features a universal body with two cylinders and a speed valve to increase efficiency. Four different jaw types are available. This multi-processor can be used for demolition, crushing, and cutting concrete and steel structures.

This multi-processor comes standard with 360-degree hydraulic rotation, ensuring optimal positioning and precise control. It is suitable for excavators weighing between 10 and 85 tons.

Looking for a multi-processor for your excavator? Below you’ll find our selection, making it easy to compare options. This way, you’re sure to find the right attachment for your project. Prefer personal advice? Contact us or fill out the quotation form!

SC 100

Machineklasse	10 - 14 t
Werkgewicht	1000 kg
Oliedebiet	90 - 130 l/min
Werkdruk	320 bar
Oliedebiet rotatie	5 - 15 l/min
Max. werkdruk rotatie	120 bar
Crusher
Gewicht product	1050 kg
Bekopening	1600 mm
Beklengte	550 mm
Breekkracht, kaakeind	45 t
Combi
Gewicht product	1080 kg
Bekopening	630 mm
Beklengte	590 mm
Breekkracht, kaakeind	45 t
Shear
Gewicht product	980 kg
Bekopening	280 mm
Beklengte	330 mm
Breekkracht, kaakeind	60 t

Request quote

SC 140

Carrier Weight	16 - 21 t
Operating Weight	1030 kg
Oil Flow	130 - 170 l/min
Working Pressure	350 bar
Oil Flow Rotation	10 - 20 l/min
Max Working Pressure Rotation	120 bar
Crusher
Gewicht product	1550 kg
Jaw Opening	675 mm
Jaw Length	650 mm
Breaking Force, Jaw Tip	54 t
Combi
Gewicht product	1500 kg
Jaw Opening	700 mm
Jaw Length	650 mm
Breaking Force, Jaw Tip	55 t
Shear
Gewicht product	1450 kg
Jaw Opening	305 mm
Jaw Length	400 mm
Breaking Force, Jaw Tip	72 t
Swiss
Gewicht product	1630 kg
Jaw Opening	565 mm
Jaw Length	550 mm
Breaking Force, Jaw Tip	55 t

Request quote

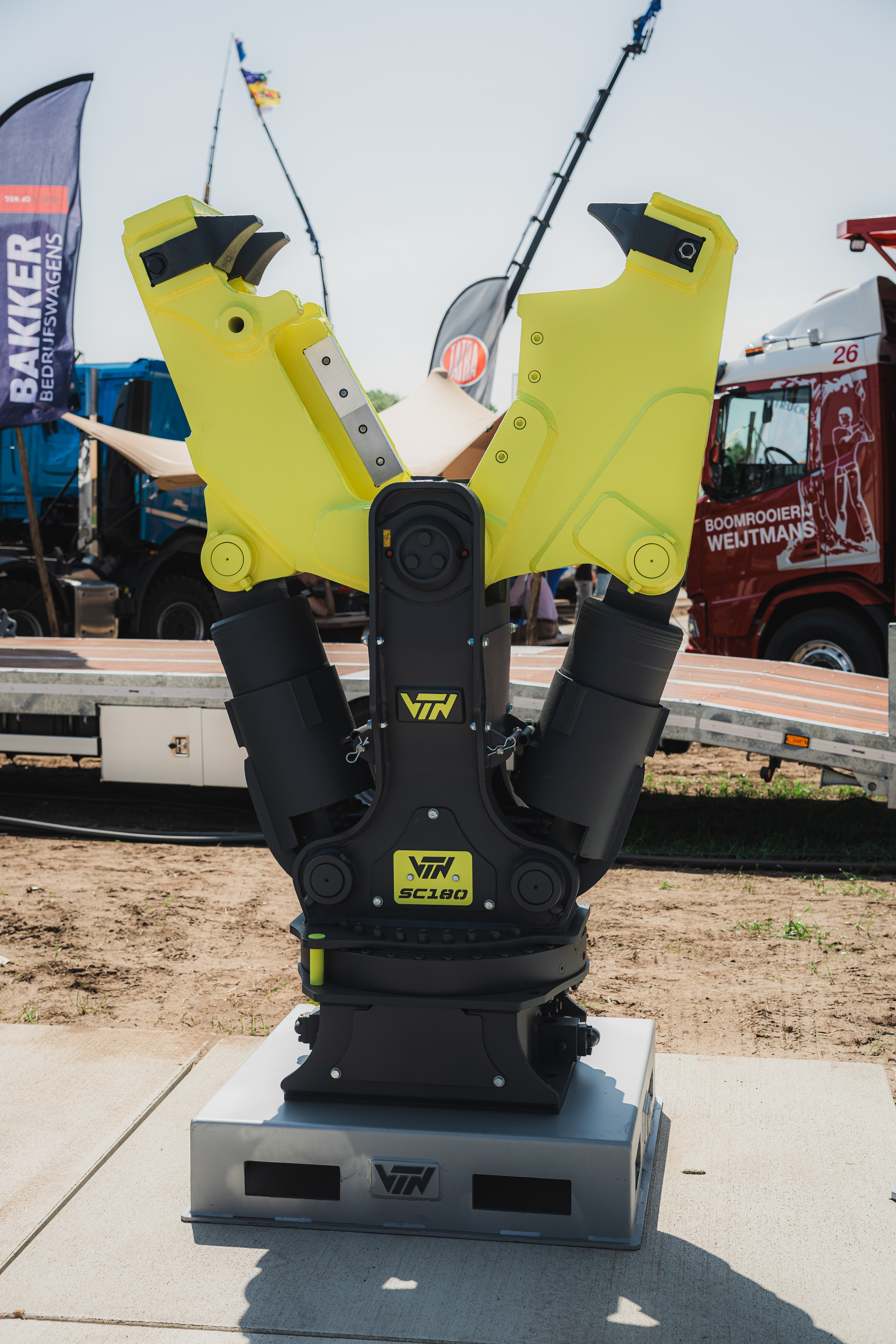

SC 180

Carrier Weight	10 - 14 t
Operating Weight	1000 kg
Oil Flow	90 - 130 l/min
Working Pressure	320 bar
Oil Flow Rotation	5 - 15 l/min
Max Working Pressure Rotation	120 bar
Crusher
Gewicht product	1050 kg
Jaw Opening	1600 mm
Jaw Length	550 mm
Breaking Force, Jaw Tip	45 t
Combi
Gewicht product	1080 kg
Jaw Opening	630 mm
Jaw Length	590 mm
Breaking Force, Jaw Tip	45 t
Shear
Gewicht product	980 kg
Jaw Opening	280 mm
Jaw Length	330 mm
Breaking Force, Jaw Tip	60 t
Carrier Weight	10 - 14 t
Operating Weight	1000 kg
Oil Flow	90 - 130 l/min
Working Pressure	320 bar
Oil Flow Rotation	5 - 15 l/min

Request quote

SC 250

Carrier Weight	25 - 35 t
Operating Weight	1680 kg
Oil Flow	250 - 300 l/min
Working Pressure	350 bar
Oil Flow Rotation	20 - 30 l/min
Max Working Pressure Rotation	120 bar
Crusher
Gewicht product	2730 kg
Jaw Opening	915 mm
Jaw Length	900 mm
Breaking Force, Jaw Tip	86 t
Combi
Gewicht product	2930 kg
Jaw Opening	850 mm
Jaw Length	870 mm
Breaking Force, Jaw Tip	86 t
Shear
Gewicht product	2525 kg
Jaw Opening	485 mm
Jaw Length	570 mm
Breaking Force, Jaw Tip	111 t
Carrier Weight
Operating Weight	2840 kg
Oil Flow	740 mm
Working Pressure	755 mm
Oil Flow Rotation	94 t

Request quote

SC 350

Carrier Weight	28 - 35 t
Operating Weight	2100 kg
Oil Flow	230 - 360 l/min
Working Pressure	350 bar
Oil Flow Rotation	30 - 40 l/min
Max Working Pressure Rotation	140 bar
Crusher
Gewicht product	3480 kg
Jaw Opening	1000 mm
Jaw Length	990 mm
Breaking Force, Jaw Tip	105 t
Combi
Gewicht product	3510 kg
Jaw Opening	1030 mm
Jaw Length	900 mm
Breaking Force, Jaw Tip	100 t
Shear
Gewicht product	3430 kg
Jaw Opening	550 mm
Jaw Length	620 mm
Breaking Force, Jaw Tip	130 t

Request quote

SC 500

SC 700

VTN SC Series Multi-Processor

Features

Optional

Fotogalerij

Carrier Weight	50 - 65 t
Operating Weight	2900 kg
Oil Flow	350 - 450 l/min
Working Pressure	350 bar
Oil Flow Rotation	40 - 50 l/min
Max Working Pressure Rotation	140 bar
Combi
Gewicht product	4900 kg
Jaw Opening	1350 mm
Jaw Length	1000 mm
Breaking Force, Jaw Tip	350 t
Shear
Gewicht product	4500 kg
Jaw Opening	720 mm
Jaw Length	600 mm
Breaking Force, Jaw Tip	400 t

Carrier Weight	58 - 85 t
Operating Weight	3800 kg
Oil Flow	450 - 550 l/min
Working Pressure	350 bar
Oil Flow Rotation	40 - 50 l/min
Max Working Pressure Rotation	140 bar
Combi
Gewicht product	6600 kg
Jaw Opening	1430 mm
Jaw Length	1200 mm
Breaking Force, Jaw Tip	400 t
Shear
Gewicht product	6000 kg
Jaw Opening	750 mm
Jaw Length	700 mm
Breaking Force, Jaw Tip	450 t
