Xcentric® Ripper Mining Series

The Xcentric Ripper Mining Series is designed for mining applications, where the highest production values are required, along with continuous shift work, making the reliability and comfort of operating the excavator essential.

The Mining Series is made from wear-resistant steel, making it virtually maintenance-free. Thanks to its uncomplicated mechanical design, it contains no expensive components, keeping maintenance costs very low. The ripper is suitable for excavators weighing between 7 and 150 tons.

Are you looking for a ripper for excavators? Below you’ll find our range and an easy comparison to help you select the right attachment for your project. Prefer personal advice? Contact us or fill out the quote form!

Characteristics

Minimal noise level 10 dB quieter than a hammer.
Underwater usable without modifications.
HARDOX Protection a special hard, wear-resistant steel alloy that hardly wears out.

Direct & Personal

Jeroen Hornman

Sales Netherland

Request a quote

Fotogalerij

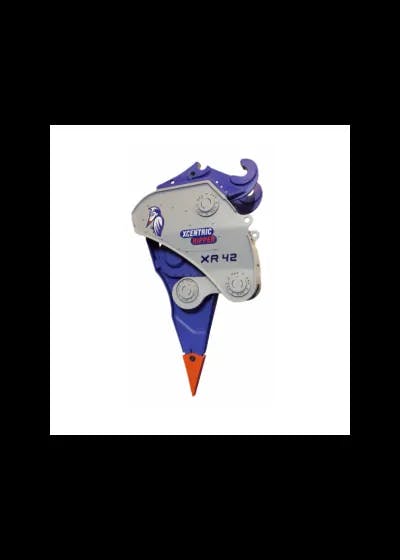

Xcentric Ripper XR42

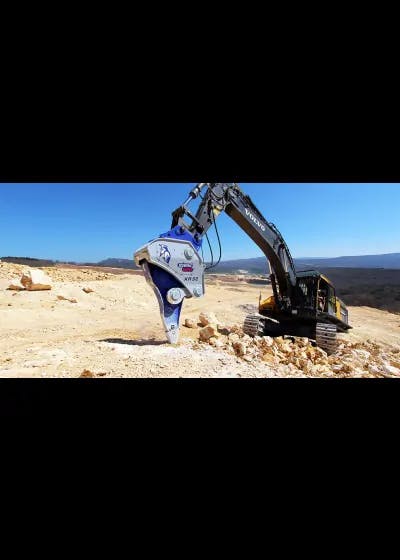

Xcentric Ripper XR52

XR22

XR32

XR42

XR52

XR62

XR82

XR122

Max. Width	83 cm
Min. Width	78 cm
Total Height	224,3 cm
Working Range	100 cm
Total Length	160 cm
Excavator Weight	18 - 23 ton
Operating Weight Ripper	2.500 kg
Hydraulic Working Pressure	16 MPa
Hydraulische oliestroom min.	160 L/min
Frequency	900 1/min
Max. Width	83 cm
Min. Width	78 cm

Max. Width	77,5 cm
Min. Width	63,5 cm
Total Height	271,5 cm
Working Range	116 cm
Total Length	166 cm
Excavator Weight	24 - 32 ton
Operating Weight Ripper	3.700 kg
Hydraulic Working Pressure	24 MPa
Hydraulische oliestroom min.	190 L/min
Frequency	1.100 1/min
Max. Width	77,5 cm
Min. Width	63,5 cm

Max. Width	86 cm
Min. Width	63 cm
Total Height	286,5 cm
Working Range	121,5 cm
Total Length	171,5 cm
Excavator Weight	32 - 40 ton
Operating Weight Ripper	3.700 kg
Hydraulic Working Pressure	24 MPa
Hydraulische oliestroom min.	210 L/min
Frequency	1.100 1/min
Max. Width	86 cm
Min. Width	63 cm

Max. Width	96 cm
Min. Width	63 cm
Total Height	300 cm
Working Range	131,5 cm
Total Length	183 cm
Excavator Weight	40 - 55 ton
Operating Weight Ripper	4.900 kg
Hydraulic Working Pressure	28 MPa
Hydraulische oliestroom min.	270 L/min
Frequency	1.100 1/min
Max. Width	96 cm
Min. Width	63 cm

Max. Width	110 cm
Min. Width	110 cm
Total Height	345 cm
Working Range	138 cm
Total Length	217 cm
Excavator Weight	55 - 70 ton
Operating Weight Ripper	7.000 kg
Hydraulic Working Pressure	28 MPa
Hydraulische oliestroom min.	280 L/min
Frequency	1.100 1/min
Max. Width	110 cm
Min. Width	110 cm

Max. Width	127 cm
Min. Width	96 cm
Total Height	357,5 cm
Working Range	153 cm
Total Length	230 cm
Excavator Weight	70 - 90 ton
Operating Weight Ripper	10.000 kg
Hydraulic Working Pressure	30 MPa
Hydraulische oliestroom min.	420 L/min
Frequency	700 1/min
Max. Width	127 cm
Min. Width	96 cm
