VTN FP05
+| Datasheet VTN FP05 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carrier Weight | 4 - 7 t | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Weight | 440 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Jaw Opening | 460 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Jaw Length | 430 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Blade Length | 85 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Pressure | 280 bar | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Oil Flow | 50 - 90 l/min | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Breaking Force, Jaw Tip | 30 t | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Oil Flow Rotation | 5 - 10 l/min | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

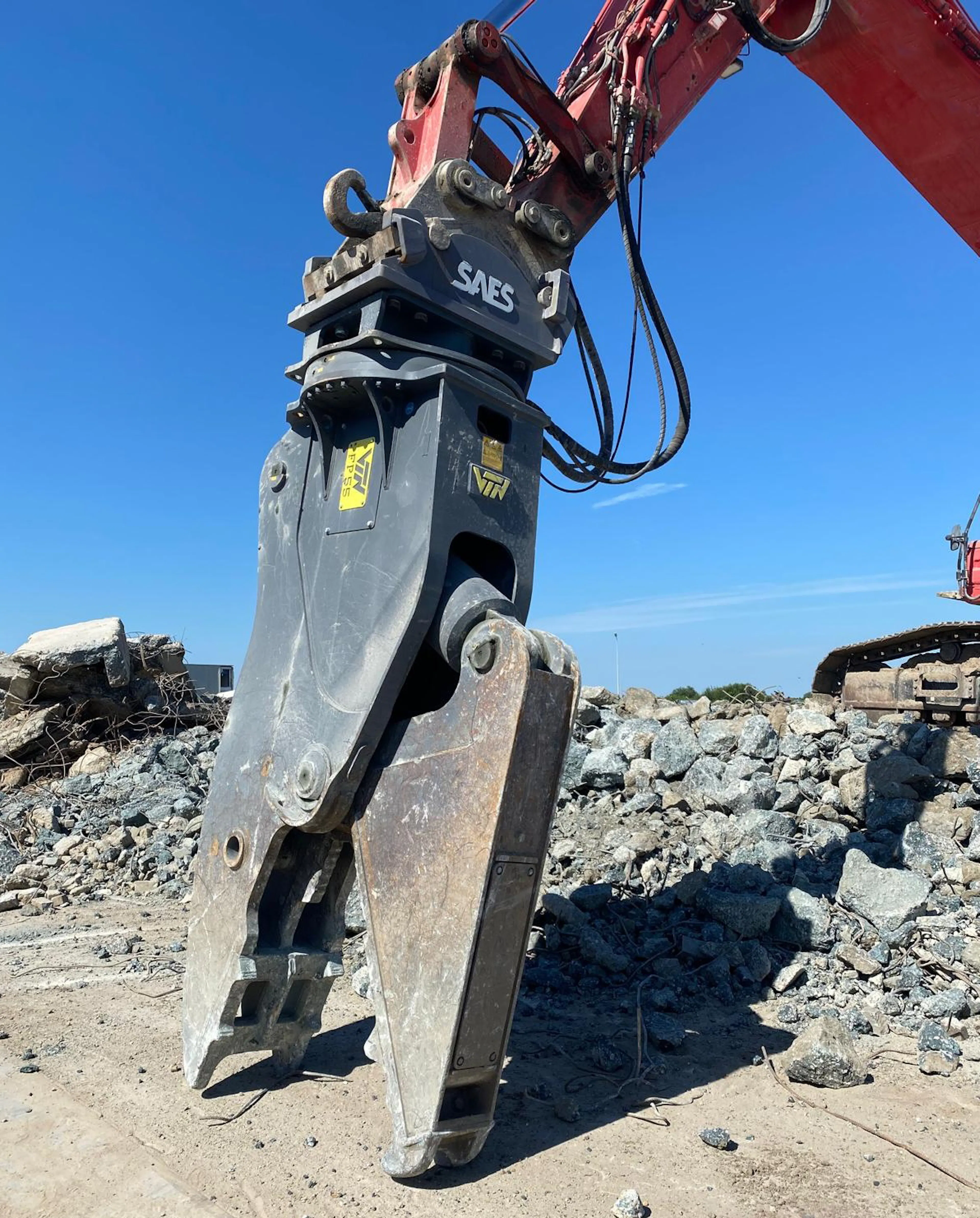

Crusher with Rotation VTN FP
The VTN FP crusher for excavators is designed for a long service life and offers a high level of breaking force. The crusher is used for demolition and recycling in locations where noise and vibration are not tolerated. Its features allow for primary and secondary demolition phases on a construction site with a single device.
The crusher is equipped as standard with 360-degree rotation for optimal positioning and precise operation. The booster provides additional power, making this crusher ideal for breaking reinforced concrete. The crusher is suitable for excavators from 4 to 110 tons.
Looking for a crusher for excavators? Below you'll find our range, making it easy to compare and ensure you select the right attachment for your project! Prefer personal advice? Feel free to contact us or fill in the quote request form!
Request a quoteFeatures
Booster for both primary and secondary demolition
The hydraulic booster raises crushing force without requiring a heavier excavator. The FP therefore handles the primary demolition phase and secondary pulverising with a single attachment, removing the need to change tools halfway through a project.
Bolt-on tooth plate and reversible cutting blades
The tooth plate and blades can be replaced separately without dismantling the jaw. Wear parts are changed on site, cutting downtime per service to part of a working day.
Crushing without impact loading
The FP breaks concrete with pressure rather than impact, keeping noise and vibration low. That makes it suitable for inner-city work and for demolition alongside structures that must stay standing, where a hydraulic breaker is not permitted.
